300w solar power system

Features of solar power system: 1. Off grid solar power system is mainly used for application with relatively-small power consumption, and the areas have no grid network coverage. 2. This solar power system needs a battery bank to store the electricity. 3. All the loads shall fully rely on the battery bank for power supply.

Solar power system Specifications

Ref No.	OFF-ZH-300W
System Basic Information	Solar Panel Rated Output Power	300W
	Suitable for Max Daily Power Consumption	1200WH
	Rated Output AC Capacity	500W
Solar panel
Type	Crystalline Silicon PV Module, A-class	2pcs
Max Power	150W
Vmp	17.5V
Size	1482x680x35 mm
Weight	12.6kg/pc
25 years power output guarantee (Note: 2pcs panels connect in series)
Controller
Voltage	DC12V/24V	1pc
Current	10A
PWM high-efficiency charging controller, LED display, intelligent control; Temperature compensation, various protections.
Inverter
Input Voltage	DC24V	1pc
Output Voltage	AC220V/230V/240V/110V 1-phase
Frequency	50/60Hz
Efficiency	90%
Battery
Capacities	12V/100AH per piece	2pcs
Service life	5 to 6 years
Warranty	3 years
Cable	30m
Warranty	CE RoHS

Features of solar power system:

1. Off grid solar power system is mainly used for application with relatively-small power consumption, and the areas have no grid network coverage.

2. This solar power system needs a battery bank to store the electricity.

3. All the loads shall fully rely on the battery bank for power supply.

About solar power system equipment:

Attention:

This solar power system solution is just for reference. It can be adjusted based on actual condition and requirement. All parts have been tested and proven in actual operation with enough reliability and stability. It ¡s suggested to source whole system as a package from us to guarantee the system compatibility.

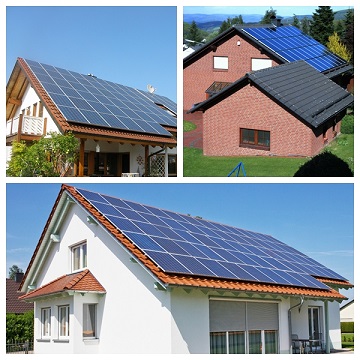

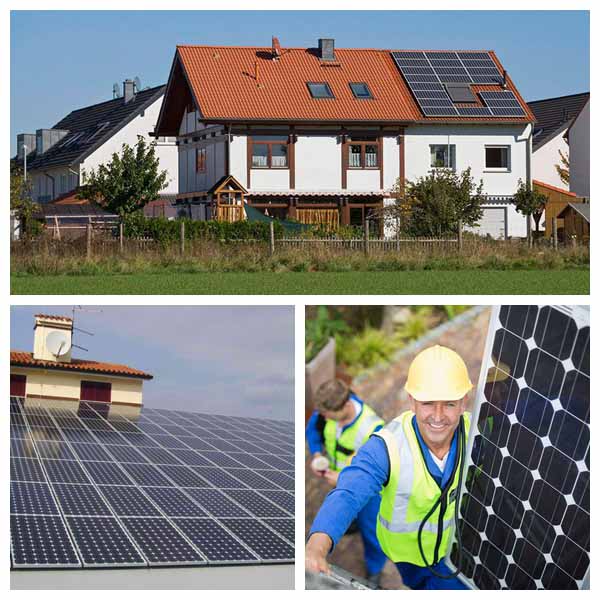

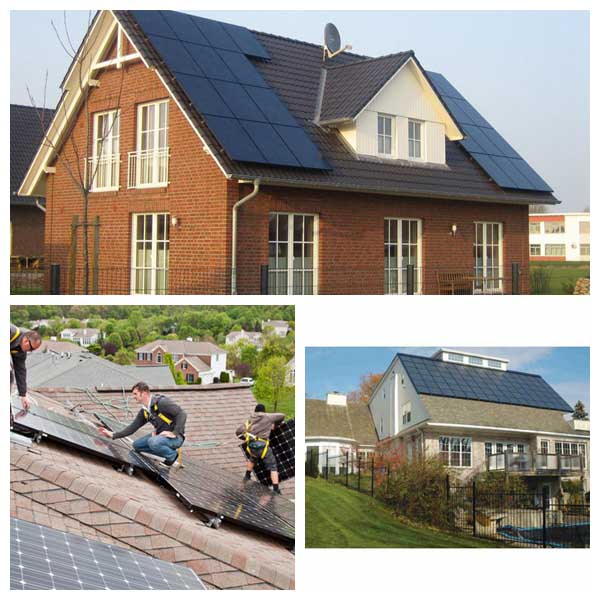

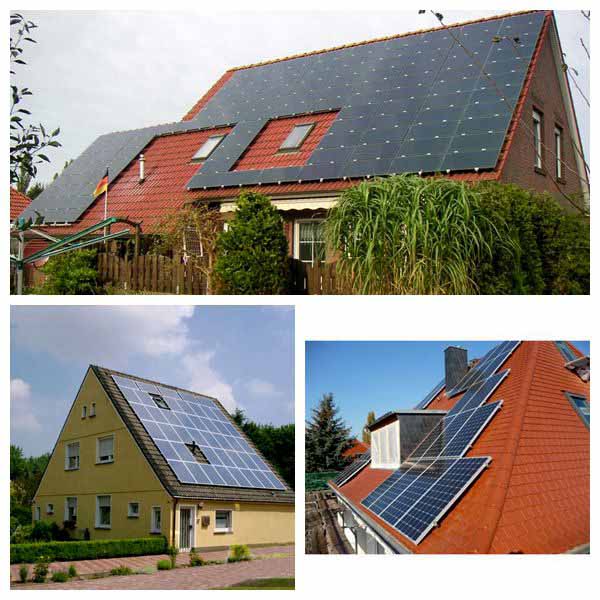

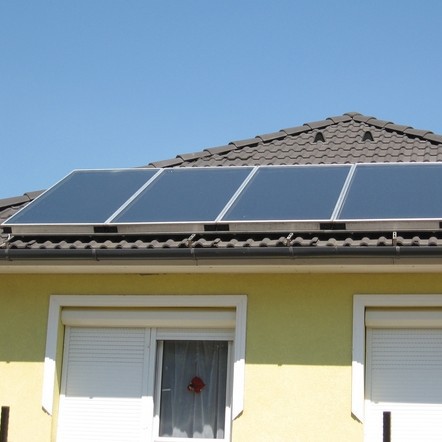

Solar power system applications:

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, venue, stadium and so on

4. Power station, field operation and some huge engineer construction.

Terms and conditions:

1. Price: FOB Shanghai based on 1 set.
2. Payment: 30% by T/T, balance by T/T before shipment. Other payment way can be negotiated for big order.

3. Package: Export standard package suitable for tough handling and sea transport.
4. Delivery: Goods to be ready within 10~30 days depending on order quantity.
5. Certification: CE, ROHS
