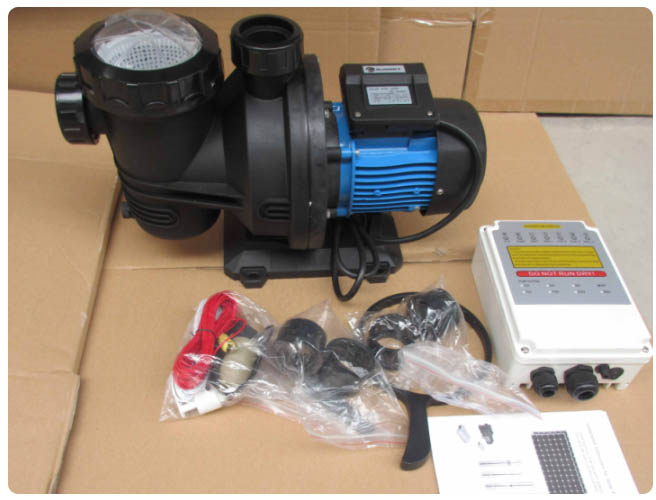

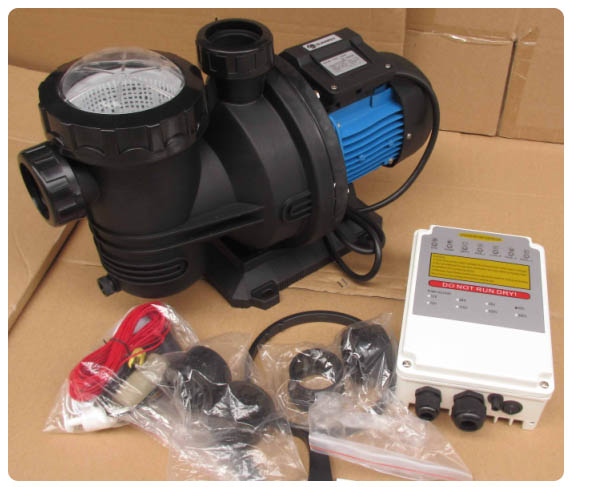

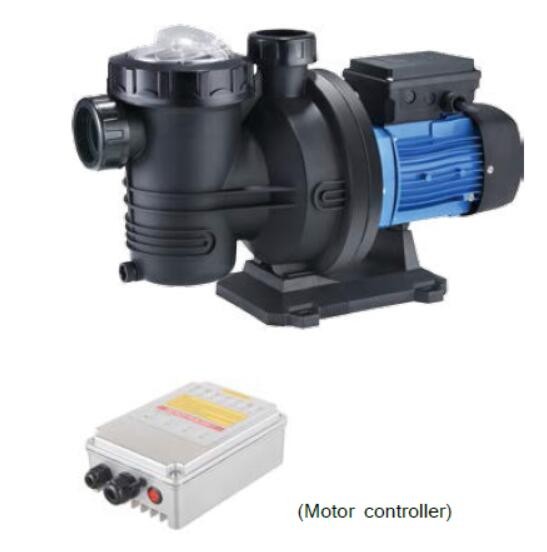

Self-circulation pump

Compared with the traditional alternating current machine, the efficiency is improved 25% by the permanent magnetism, direct current, brushless, nonsensor motor.

MATERIAL OF PARTS:

Outlet: plastic

Pump body: plastic

Motor body: Aluminium

ADVANCED TECHNOLOGY:

1.Application innovation

Compared with the traditional alternating current machine, the efficiency is improved 25% by the permanent magnetism, direct current, brushless, nonsensor motor.

2.Technics innovation

Adopt double plastic package for rotor and stator, motor insulation≥300MΩ, the motor security was much improved.

3.Structure innovation

Oil filling, convenient installation and environmental protection

Model	Pump Voltage (V)	Pump Power (W)	MAX. Flow M3/H	MAX. Head M	MAX. Suct M	Inlet/Outlet (IN)	GW (Kg)	Outer Diameter (MM)
SJP6-9/270	24	270	6	9	5	2"	13	570290390
SJP17-15/500	48	500	17	15	5	2"	15	570290390
SJP21-19/900	72	900	21	19	5	2"	18	570290390
SJP31-19/1200	72	1200	31	19	5	2.5"	26	670310450
