AC / DC Solar Pump PSU

AC / DC Power Supply Unit (PSU) to use your solar pump with an alternative AC power source.

Use the PSU to power your pump at night or if it’s a cloudy day to get more water from your borehole.

Suitable for use on any Sunmoy solar pump.

Key Features

AC / DC Power Supply Unit (PSU) to use your solar pump with an alternative AC power source.

Use the PSU to power your pump at night or if it’s a cloudy day to get more water from your borehole.

Suitable for use on any Sunmoy solar pump.

Use with Mains electricity or a Generator. Ideally this AC power pack should be installed with a manual change over switch for easy switching between Solar and Mains.

Turn pump off before switching.

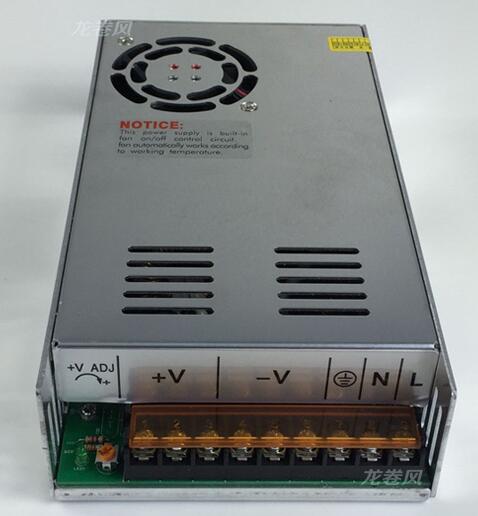

S-360-36 PSU

Input Voltage	100 – 230 VAC
Input Frequency	50 / 60Hz
Output Voltage	36V
Output Current	10A
Recommended Load	8A
Output Adjustment Range	± 10% DC
L x W x H	216 x 114 x 50 mm
Weight	780g
Use For	24v Pump
Warranty	12 Months
Install surge protection on AC side

S-800-72 PSU

Input Voltage	100 – 230 VAC
Input Frequency	50 / 60Hz
Output Voltage	72V
Output Current	10A
Recommended Load	8A
Output Adjustment Range	± 10% DC
L x W x H	214 x 124 x 65 mm
Weight	900g
Use For	48v Pump / 72v Pumps
Warranty	12 Months
Install surge protection on AC side
