Solar pump inverter for 3-phase water pump

MPPT technology, tracking maximum output power of solar panel
No need batteries
Self protection against over-flow or dry up

Solar Frequency inverter special for solar water pump

MPPT technology, tracking maximum output power of solar panel

No need batteries

Self protection against over-flow or dry up

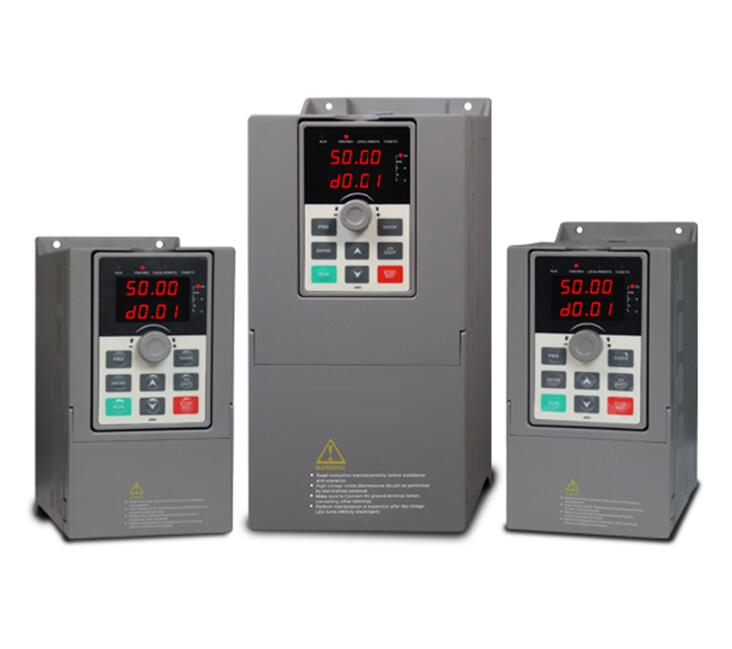

PIS series frequency inverter special for solar water pump adopts the high accuracy fast MPPT algorithms, tracking the PV array output by the maximum power point, driving the

pump motor as much as possible to meet various pumping applications.

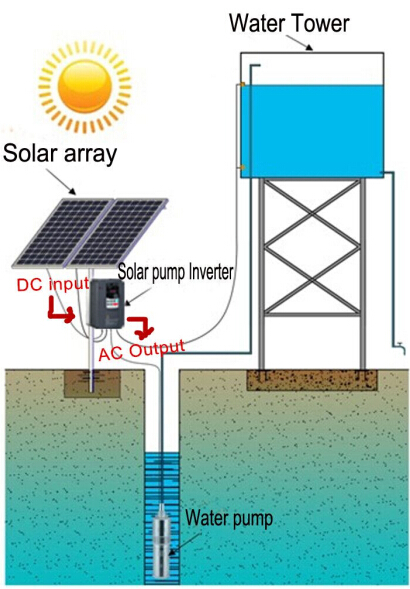

The frequency inverter special for solar water pump can support AC input besides support PV array DC input. When the PV array can not drive the motor or doesn’t have output,

it can also accept the grid AC input or other AC motor to supply the power to meet various emergency needs.

PIS frequency inverter special for solar water pump provides full protection, maximizing the life of motor and pump

Inverter Model	Input voltage	Rated output power	Rated output voltage
PIS-750W	DC 350-750V or 3-phase AC 380V ± 10%;	0.75KW	3-phase AC 380V ± 10%;
PIS-1.5KW		1.5KW
PIS-2.2KW		2.2 KW
PIS-4KW		4.0 KW
PIS-5.5KW		5.5 KW
PIS-7.5KW		7.5 KW
PIS-11KW		11 KW
PIS-15KW		15 KW
PIS-18.5KW		18.5 KW
PIS-22KW	DC 350-750V or 3-phase AC 380V ± 10%;	22 KW	3-phase AC 380V ± 10%;
PIS-30KW		30 KW
PIS-37KW		37 KW
PIS-45KW		45 KW
PIS-55KW		55 KW
PIS-75KW		75 KW
PIS-90KW		90 KW
PIS-110KW		110 KW
PIS-132KW		132 KW
